DIAGONAL CLEAT 190X100 LEFT

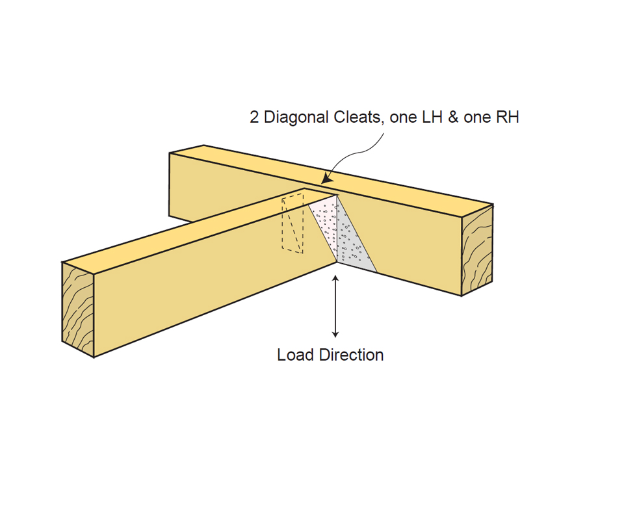

NPD is commonly used for beam to beam connections whilst NPD150/63 is commonly used for subfloor connections and forms part of the pile bearer kit.

FEATURES

• Versatile fixing that allows flexibility when working with different timber sizes

APPLICATION

• Use Pryda Product Nails (35mm x 3.15mm galvanised
• Use 75 x 3.15 diameter Flat Head nails when nailing into poles (e.g. girt to pole fixing)
• 20 Nails required in each flange to achieve stated design loads (Beam to Beam Connection).
